V64 Small CNC Milling Machine

V64 Small CNC Milling Machine is also called mini CNC mill. It has a lot of names. It can also call it a small machining center. Its main function is milling and drilling. This is a small high-speed CNC milling machine equipped with 12000rpm high-speed spindle, 3-axis 48M/min moving speed, it can do a lot of work, adapt to a variety of hard materials, widely used in various fields

SEND INQUIRY

You can make an inquiry about this product.
Your e-mail will not be leaked.

  • PRODUCT DETAIL
  • PRODUCT SPECIFICATIONS
  • ACESSORIES
>V64 Small CNC Milling Machine is also called mini CNC mill. It has a lot of names. You can also call it a small machining center. Their function is mainly milling and drilling, Let’s take a look at this machine to understand its characteristics .V64 Small CNC Milling Machine

V64 Small CNC Milling Machine viode


Best casting material

V64 Small CNC Mill uses the best casting materials, major structural parts are manufactured from high quality Meehanite cast iron (GB 300+), tempered for stress relief with hardness over 190HB.

Best casting material

High-intensity head design

The machine head is a very important part. The V64 Small CNC Mill uses a high-strength head design. Strengthened cross-ribs to increase bending and torsion resistance.

High-intensity head design

Large span column design

The large-span column design is more capable of improving the stability of the machine tool and reducing vibration during machining. Box structure large span A type column with high rigidity to ensure stability during machining.

Large span column design

Thickened honeycomb fuselage structure

The small CNC mill has a thickened honeycomb fuselage with eight support legs, reducing distortion.
Weight, this structural design makes the base more stable in the actual production process to reduce machine tool vibration.


Highly rigid spindle head

The spindle head is a very important part of mini CNC mill, its rigidity and strength directly affect the machining quality of the machine tool. The spindle head of this mini CNC mill adopts box structure to design, to increase cutting rigidity, improve the machining efficiency.

Highly rigid spindle head

High-speed linear guide

Equipped with a high-speed linear guide and multiple sliders, this small CNC milling machine with three axes can reach speeds of up to 48m / min under the brands of Taiwan HIWIN or German Rexroth, which gives it high processing efficiency and saves processing time.

High-speed linear guide

High precision roller screw

Ball screw with is a very important part of CNC milling machine. It affects the accuracy of machine tools. This machine uses C3 grade high precision ball screw with pre-extension process, improve the transmission rigidity and machine accuracy.

High precision roller screw

High rigidity and high-speed spindle

V64 small CNC milling machine is equipped with BT40 12000rpm high-speed spindle, and provides 15000rpm spindle to choose from, their speed is very fast, and the processing precision is high, the surface is beautiful.

High rigidity and high-speed spindle

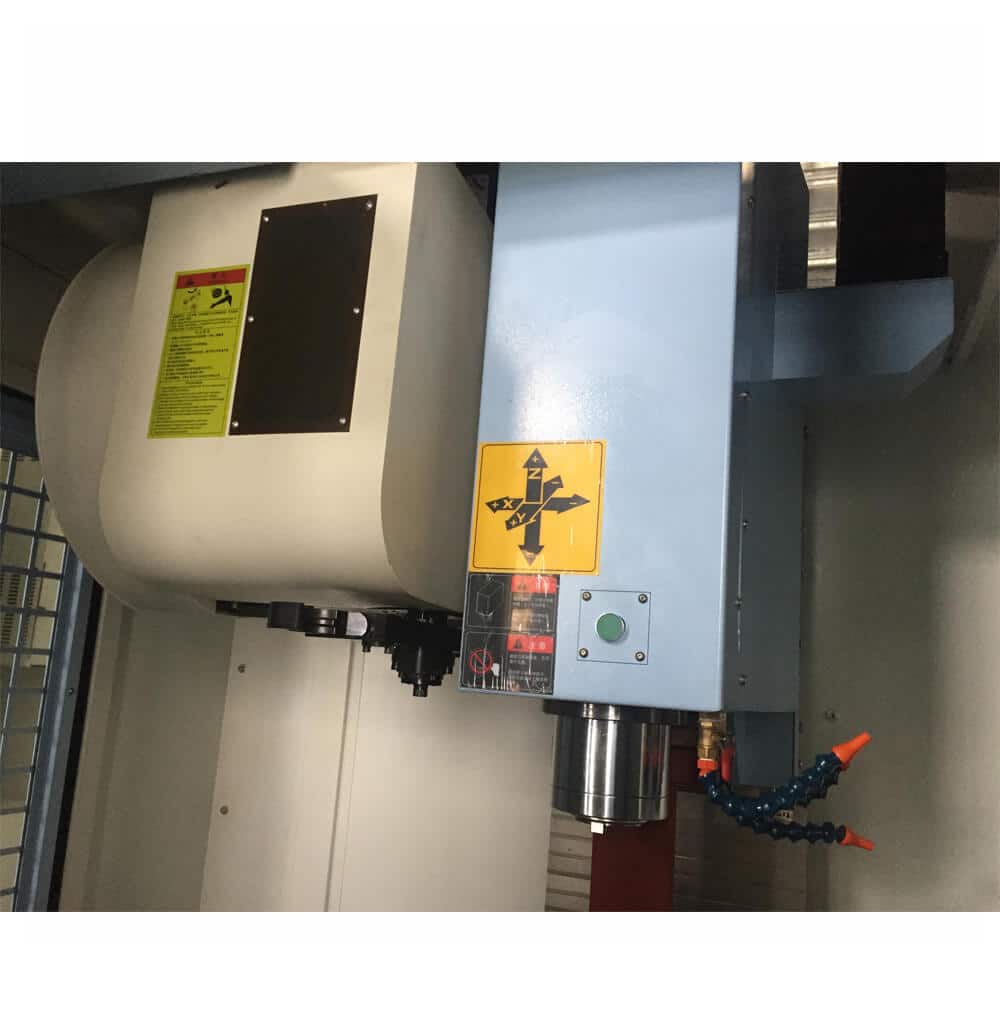

High speed automatic tool changer

The small CNC mill with high-speed automatic tool changer can automatically change the tool, which makes it more efficient. This mini CNC mill is equipped with a 16-bit automatic tool changer with a fast tool change speed.

High speed automatic tool changer

Equipped with well-known brand CNC controller

The CNC controller is the brain of CNC mill. This small CNC mill has four brands of CNC controllers to choose from. They are Taiwan SYNTEC/Germany Siemens/Japan Mitsubishi/Japan FANUC, and they all have rich experience in CNC controller manufacturing. , high market share, and provide complete technical manuals.

Equipped with well-known brand CNC controller

3 axis precision protective cover

CNC milling machines will continue to produce iron filings during the machining process, which will damage the machine. This small CNC mill 3 shaft is equipped with a precision protective cover to prevent iron filings from damaging the machine during production.


Quality management

Every machine tool produced by TAICNC is produced in strict accordance with the ISO standard. During this process, a variety of quality management tests will be carried out. We must ensure that all the CNC machine tools delivered to our customers are qualified and perfect.

TAICNC Quality management


Production sample

V64 small CNC milling machine can do a lot of work this is only part of it, it can process a lot of materials such as copper, aluminum, steel, Bakelite and so on, can be used in various fields, if you are not sure whether to meet your requirements welcome to contact us.

Production sample


About packaging and shipping

We use strict packaging for all machine tools to ensure that it will not be damaged during transportation. We have good cooperation with many transportation companies. We must ensure that the machine can be transported safely and on time to your factory.

About packaging and shipping


TAICNC certificate

TAICNC has passed the ISO9001 / 14001 certification and CE certification, obtained a number of national patents, and strictly comply with manufacturing standards.

TAICNC certificate

TAICNC manufacturing factory show

We have a sound management system and a clean factory, which is the first condition to ensure product quality.

TAICNC manufacturing factory show TAICNC manufacturing factory show

TAICNC manufacturing factory show TAICNC manufacturing factory show

PRODUCT SPECIFICATIONS

Items Unit V64
Travel
X axis mm 600
Y axis mm 400
Z axis mm 450
Distance from spindle nose to table mm 150-600
Distance from spindle center to Z-axis guide-way mm 476
Table
Dimension mm 700 X 400
Max. table load kg 300
T-slot (width*pitch*number) mm 14 X 120 X 3
Spindle
Spindle type - Belt
Spindle speed rpm 12000
Spindle motor power (cont./30 min rated) kW 5.5
Spindle taper - BT40
Feed Rate
Rapid traverse(X/Y/Z) m/min 48 / 48 / 48
Cutting feed rate mm/min 1-10000
Motor power (X/Y/Z) kW 1.8 / 1.8 / 1.8
ATC
ATC type - Arm type
Magazine capacity pcs 16
Max. tool diameter (adjacent pocket empty) mm 80 / 120
Max. tool length mm 200
Max. tool weight kg 5
Tool shank - BT 40
Space & System Requirement
Pneumatic pressure kgf/cm² 6
Machine net weight kg 3500
Max. floor space (WxLxH) mm 1840 X 2470 X 2370

ACESSORIES

A. Standard Accessories B. Optional Accessories
1. SYNTEC 21MA controller 1. SIEMENS 808D  controller
2. 12000rpm, BT40,Direct type spindle 2. 15000rpm, BT40, Direct type spindle
3. 16 tool, BT40, Arm type 3. MITSUBISHI M80A  controller
4. Spindle air blast 4. FANUC 0iMF controller
5. Cutting air blast 5. 4th axis rotary table
6. Spindle oil cooler 6. 5th axis rotary table
7. Cutting coolant system 7.
8. Automatic centralized lubrication system 8.
9. Chip auger with lift up exhaust tube 9.
Working light 10.
11. Indication tower light 11.
12. Coolant gun & air gun 12.
13. Coolant flushing system 13.
14. Coolant tank 14.
15. Manual pulse generator ( MPG ) 15.
16. Ethernet & RS-232C interface 16.
17. Heat exchanger for electrical cabinet 17.
18. Tool kits 18.
19. Leveling bolts & pads 19.
20. Operation manuals
21. One-year machine warranty(Spindle warranty upon spindle manufacturer)
22. Controller warranty(Controller warranty upon controller manufacturer)
